- Wheel Material: Hard Nylon roller bearing
- Wheel Diameter: 100mm
- Tread Width: 40mm
- Mount Height: 138mm
- Weight Rating: 350KG
- Turning radius swivel plate: 96mm
- Turning radius swivel plate total brake: 140mm

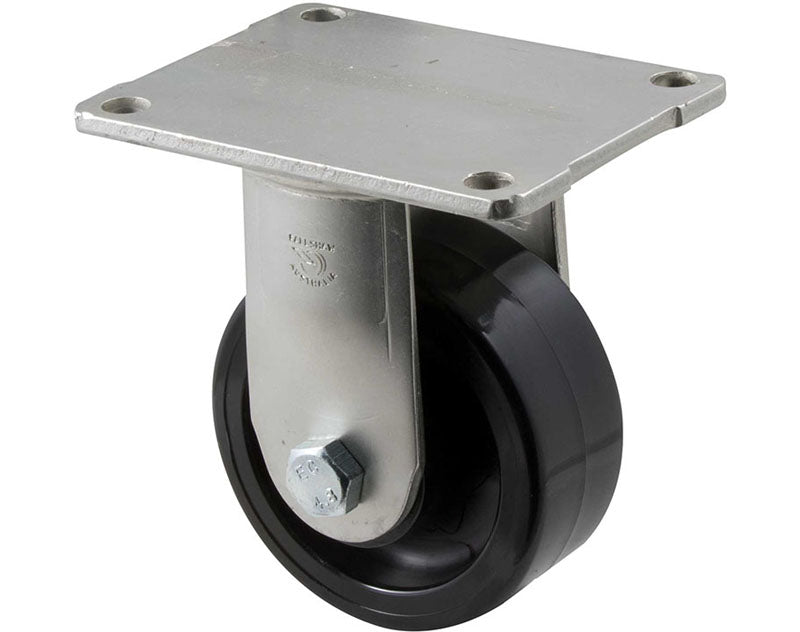

Our 100mm (4 inch) heavy duty industrial Nylon wheel castors are an excellent solution for industrial trolleys that weigh up to 1,400kg. Nylon Wheels are preferred when you have smooth floors. Nylon has high strength-to-weight ratio and it provides low rolling resistance. We also recommend nylon for applications such as heavy tables being moved seldomly.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium and metal when used in non corrosive environments.
The plate castors can be fastened by bolting the 130x100mm mounting plate using the four 11mm holes with 80x105mm hole centres. The turning radius of the swivel castors is 96mm and the turning radius for the total brake castors is 140mm. The total height from the floor to the top of these castor units is 138mm and each has a maximum rolling safety load rating of 350kg.
The Hard Nylon wheels are 100mm diameter x 40mm tread width and have a 12.7mm bore x 60mm hub width and run on rolling bearings in the centre of the wheel.
