- Wheel Material: Keyed Polyurethane with roller bearing
- Wheel Diameter: 100mm
- Tread Width: 40mm
- Mount Height: 138mm
- Weight Rating: 300KG
- Turning radius swivel plate: 96mm
- Turning radius swivel plate total brake: 140mm

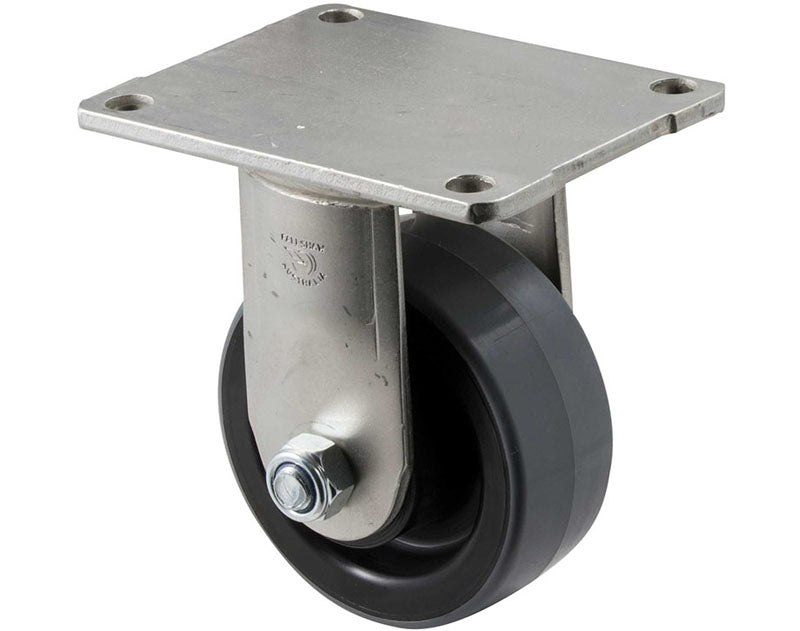

Our 100mm (4 inch) heavy duty industrial Polyurethane PU wheel castors are the best solution for industrial trolleys in hospitals, school, industrial warehouses and weigh up to 1,200kg. Our Polyurethane (PU) Wheels are preferred when you want to protect your floors.
The Industrial duty polyurethane is high grade and mechanically keyed into the nylon centre. It will not embrittle or chip off which makes these hard wearing wheels better suited to environments where there could be heavier loads running on smooth concrete, tiles or lino vinyl floor surfaces.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments.
The plate castors can be fastened by bolting the 130x100mm mounting plate using the four 11mm holes with 80x105mm hole centres. The turning radius of the swivel castors is 96mm and the turning radius for the total brake castors is 140mm. The total height from the floor to the top of these castor units is 138mm and each has a maximum rolling safety load rating of 300kg.
The Polyurethane PU wheels are 100mm diameter x 40mm tread width and have a 12.7mm bore x 60mm hub width and run on rolling bearings in the centre of the wheel.
