- Wheel Material: Keyed Polyurethane with Roller Bearing centre
- Wheel Diameter: 125mm
- Tread Width: 38mm
- Castor height: 155mm
- Weight Rating: 300KG
- Swept radius swivel plate and bolt hole: 106mm
- Swept radius swivel plate and bolt hole total brake: 122mm
The most durable PU castor on the market. This wheel is our most widely used and versatile wheel and has been used in the NZ manufacturing, hospitality and logistic industries for over 30 years. The polyurethane used in these wheels is of high grade and mechanically keyed into the nylon centre. It will not embrittle or chip off which makes these more suited to environments where there will be heavier loads as well as varying rolling surfaces such as smooth concrete, rough concrete, tiles, lino vinyl or even carpet floor surfaces.
The Grey urethane is best for long life applications, one of the most durable materials but still light weight makes it suitable for applications where grease and chemicals are present.
Our 125mm (5 inch) industrial urethane wheel castors are the best solution for equipment trolleys that take loads of up to 1,400kg and roll on rough surfaces. The roller bearing helps spread the load of impacts when going through doorways and over rough ground.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments. These feature two complete rows of balls in the headrace to ensure ease of smooth swivelling and silence during the life of the trolley.

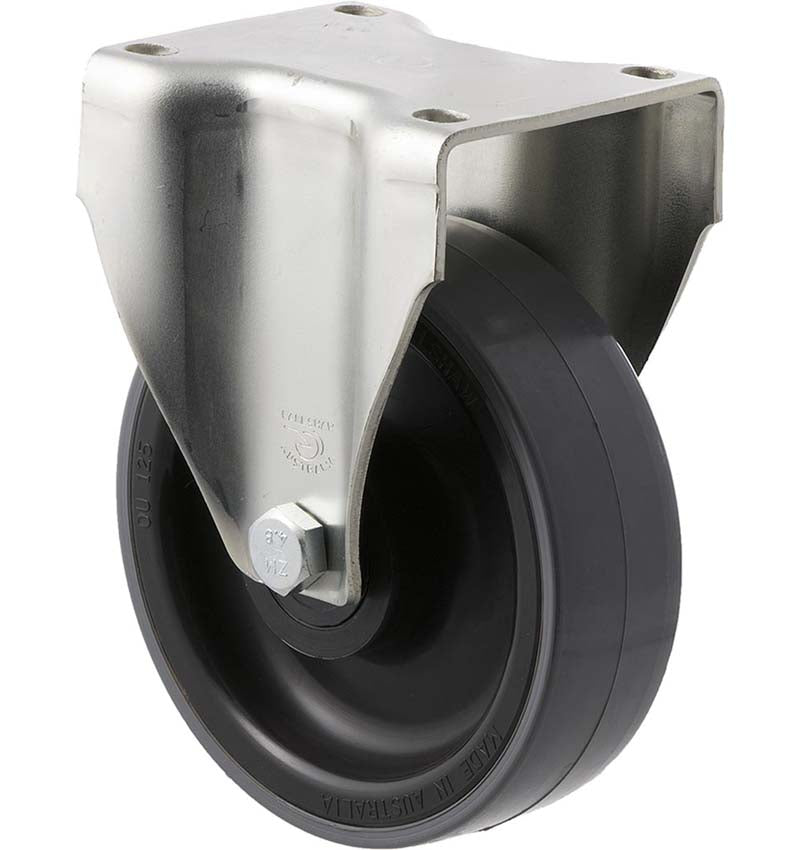

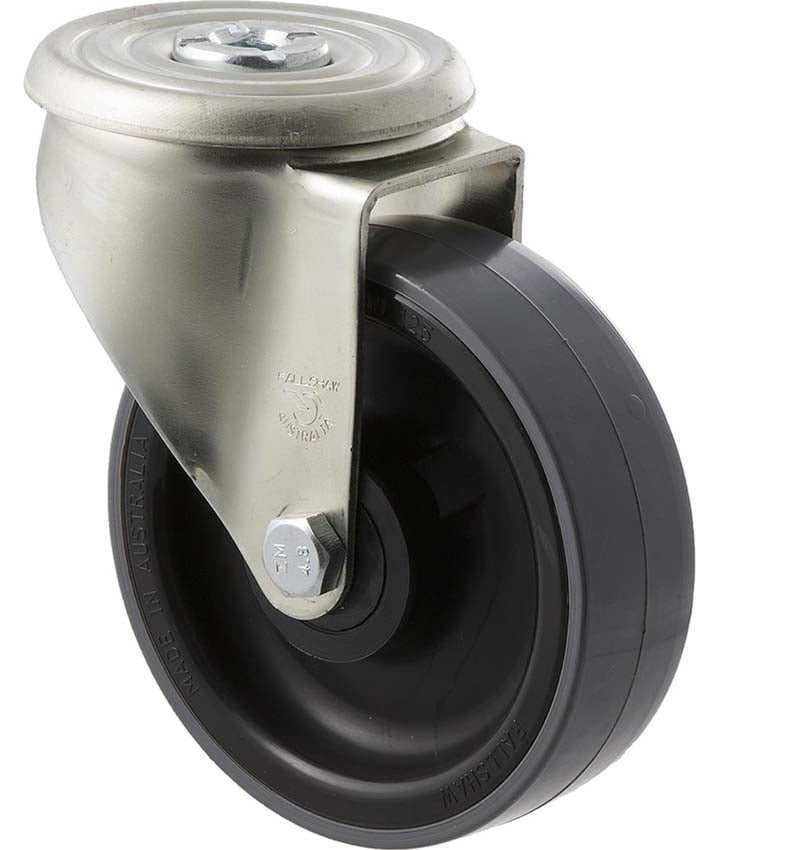

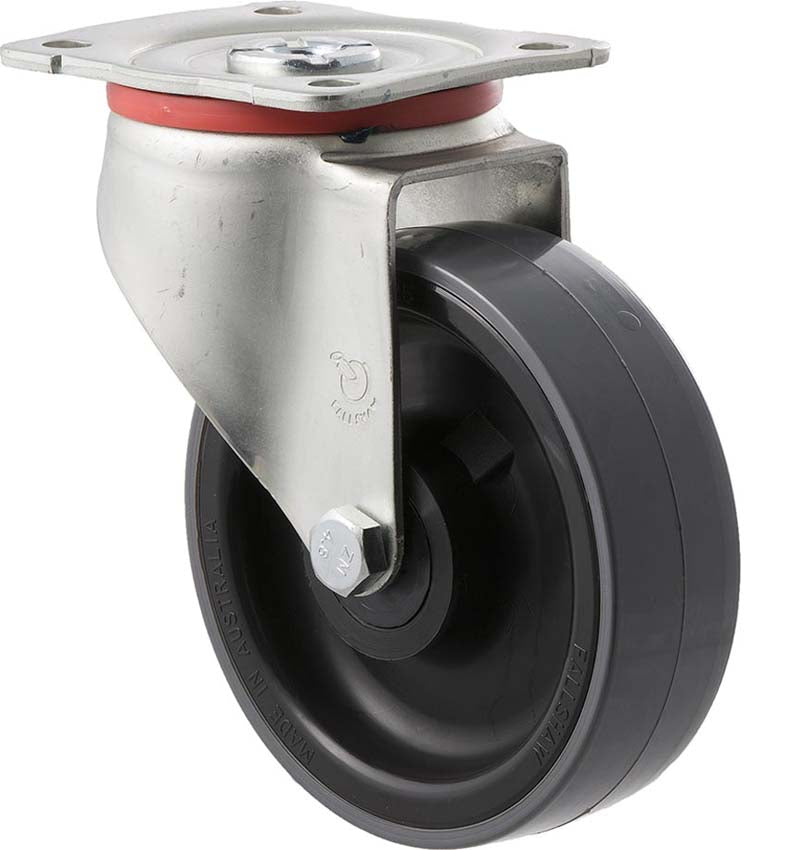

The plate castors can be fastened by bolting the 86x100mm mounting plate using the four 9mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.

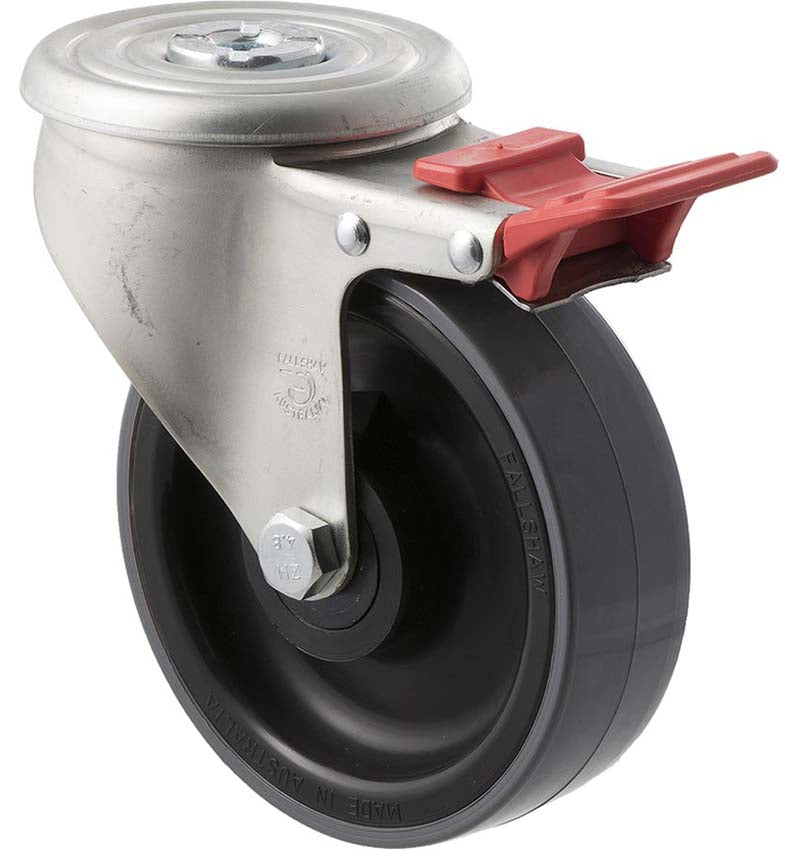

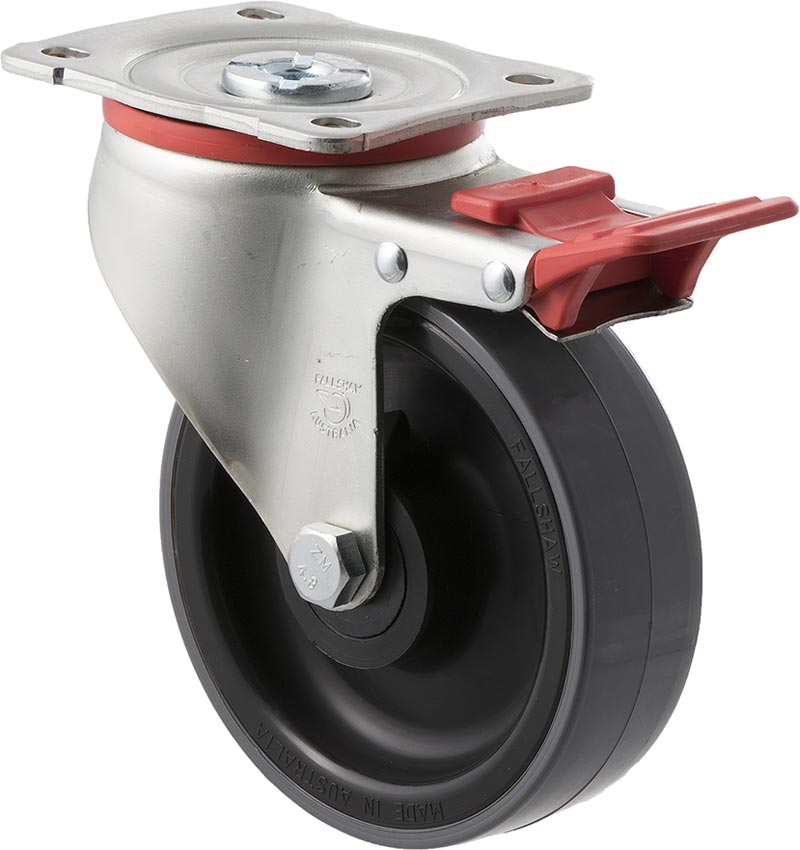

The swept radius of the swivel castors is 106mm and the swept radius for the total brake castors is 122mm. The total height from the floor to the top of these castor units is 155mm and each has a maximum rolling safety load rating of 300kg.
The Urethane wheels are 125mm diameter x 38mm tread width and have a 10mm bore x 45mm hub width and run on needle roller bearing in the centre of the wheel.
