- Wheel Material: Keyed Polyurethane with roller bearing
- Wheel Diameter: 200mm
- Tread Width: 48mm
- Mount Height: 239mm
- Weight Rating: 500KG
- Swept radius swivel plate: 152mm
- Swept radius swivel plate total brake: 162mm

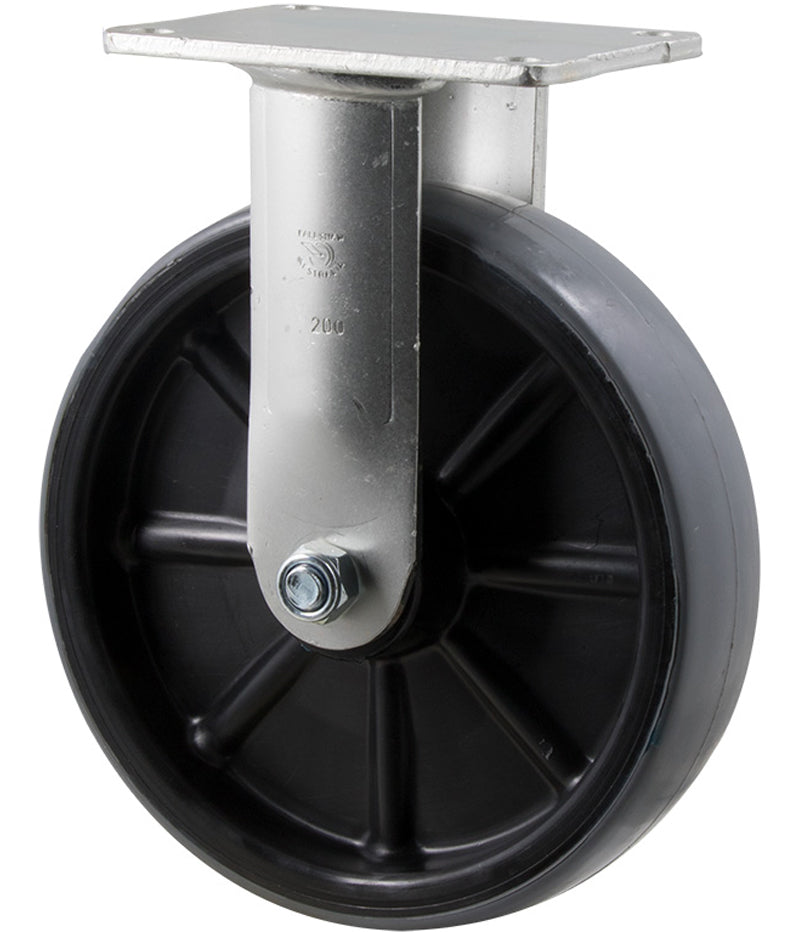

Our 200mm (8 inch) industrial duty polyurethane wheels have high grade PU mechanically keyed into the nylon centre. The PU will not embrittle or chip off which makes these more suited to environments where there could be heavier loads running on smooth concrete, tiles or lino vinyl floor surfaces.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments.
The plate castors can be fastened by bolting the 130x100mm mounting plate using the four 11mm holes with 80x105mm hole centres. The swept radius of the swivel castors is 152mm and the swept radius for the total brake castors is 162mm. The total height from the floor to the top of these castor units is 239mm and each has a maximum rolling safety load rating of 500kg per castor.
The Polyurethane PU wheels are 200mm diameter x 48mm tread width and have a 12.7mm bore x 60mm hub width and run on rolling bearings in the centre of the wheel.
