- Wheel Material: Nylon Wheel Castors with plain sleeve centre
- Wheel Diameter: 75mm
- Tread Width: 32mm
- Castor Height: 106mm
- Weight Rating: 150KG
- Swept radius swivel plate and bolt hole: 71mm
- Swept radius swivel plate and bolt hole total brake: 118mm
General duty 75mm nylon wheel castors are the best solution for trolleys, furniture, tables, retail display units, clothing racks and a variety of other items that weigh up to 600kg and travel short distances. Nylon wheels are a smooth hard plastic that are well suited for carpet, smooth concrete or lino vinyl floor surfaces.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments. These feature two complete rows of balls in the headrace to ensure ease of smooth swivelling and silence during the life of the trolley.

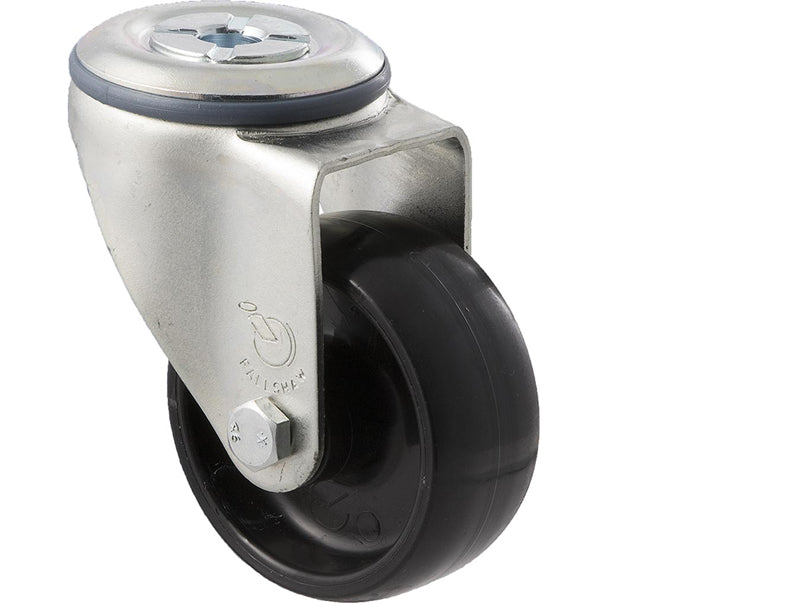

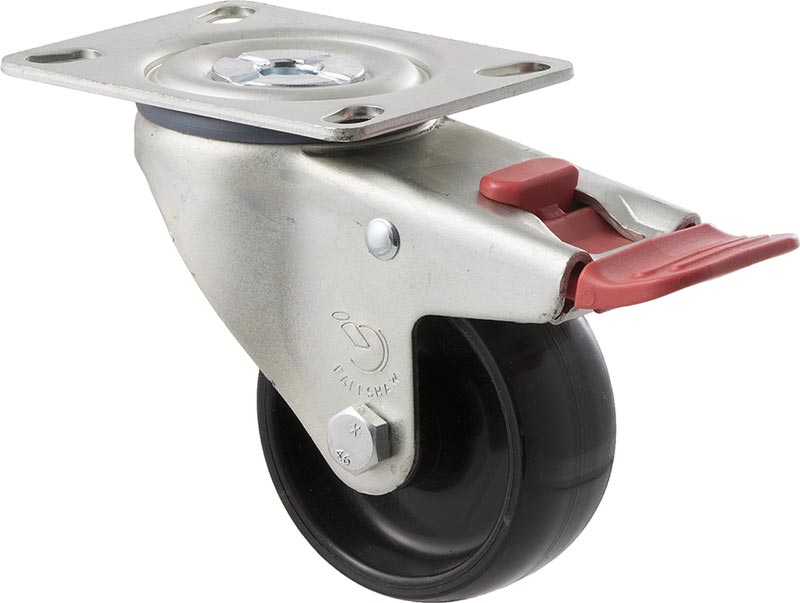

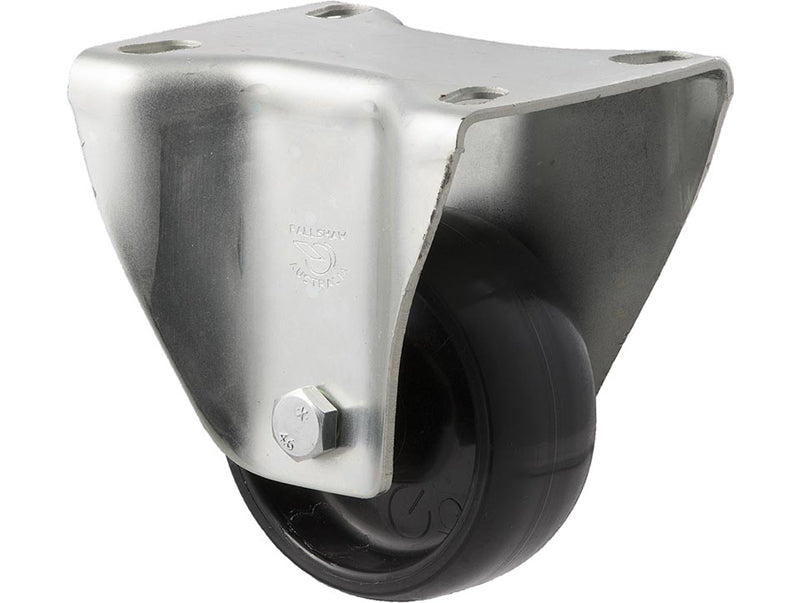

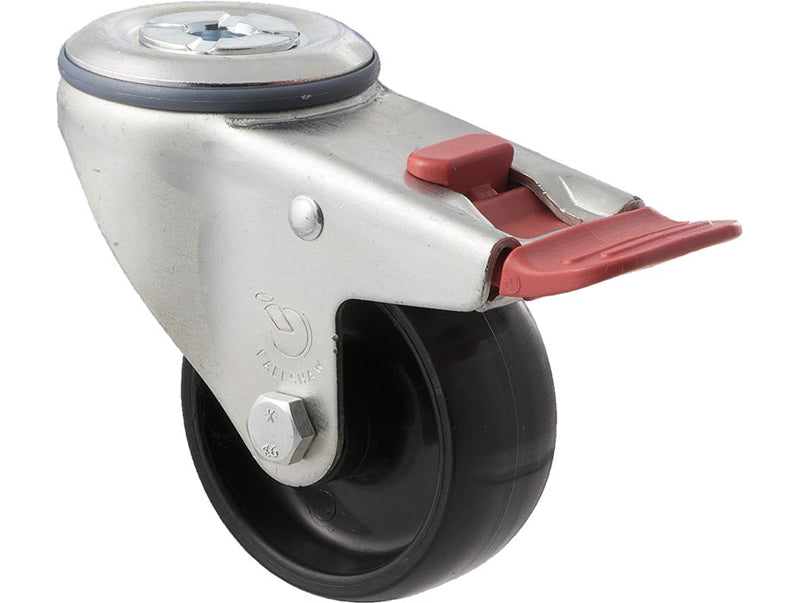

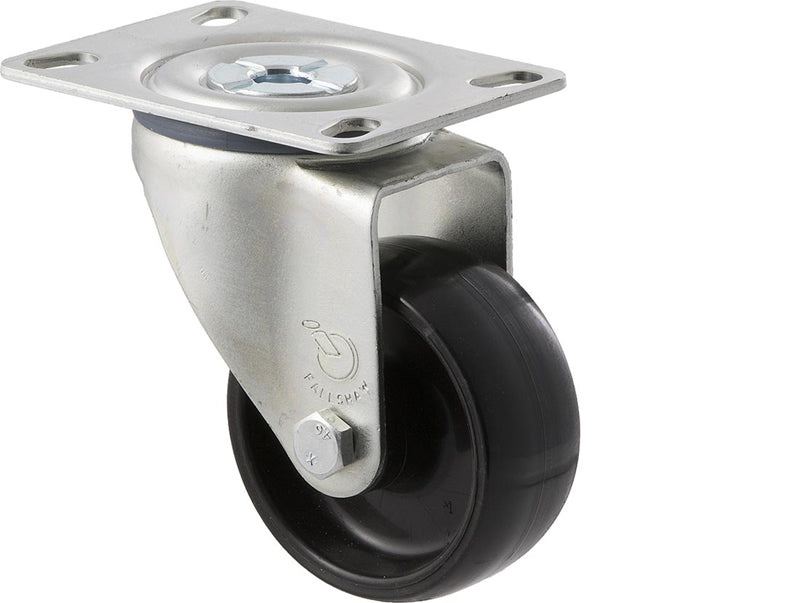

Available in swivel and fixed plate mounting styles or 12.7mm bolt hole. You can also choose the total brake option on the swivel forks to stop the castors turning and rolling when braked.

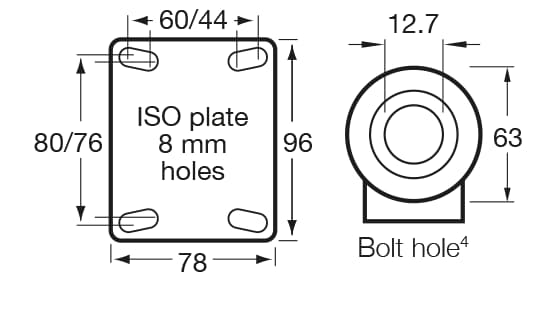

The plate castors can be fastened by screwing the 96x78mm mounting plate using the four 8mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.
The swept radius of the swivel castors is 71mm and the swept radius of the total brake castors is 118mm. The total height from the floor to the top of these castor units is 106mm and each has a maximum rolling safety load rating of 150kg per cator.
The nylon wheels are 75mm diameter x 32mm tread width and have a 8mm bore x 40mm hub width and run on a plain sleeve through the centre of the wheel.
